Умный трубчатый двигатель A-OK AM35 6/28 для рулонных штор
A-OK AM35 6/28 Smart Rolling Tubular Motor,RF433 Remote+Tuya wifi App,for...
Цена: 7 879 — 15 722 ₽
Характеристики
- Название бренда:NONE
- Номер модели:A-OK AM35-6/28-MEL-PW
- Происхождение:Китай
- Индивидуальное изготовление:Нет
- Сертификация:Евротест (СЕ), RoHS
- Напряжение:230 В
- Мощность:115w
- Скорость прокатки:28rpm
- Единица измерения:штука/штуки
- Количество:1
- Аккумулятор входит в комплект:no
- Input voltage:230V AC 50/60HZ
- current:0.485A
- Torque:6Nm
- Rated Operation Time:4 min
- work with 40mm ground tube:yes
- work with 45mm grooved tube:yes
- work with 47mm grooved tube:yes
- work with 50mm ground tube:yes
- work with 50mm grooved tube:yes

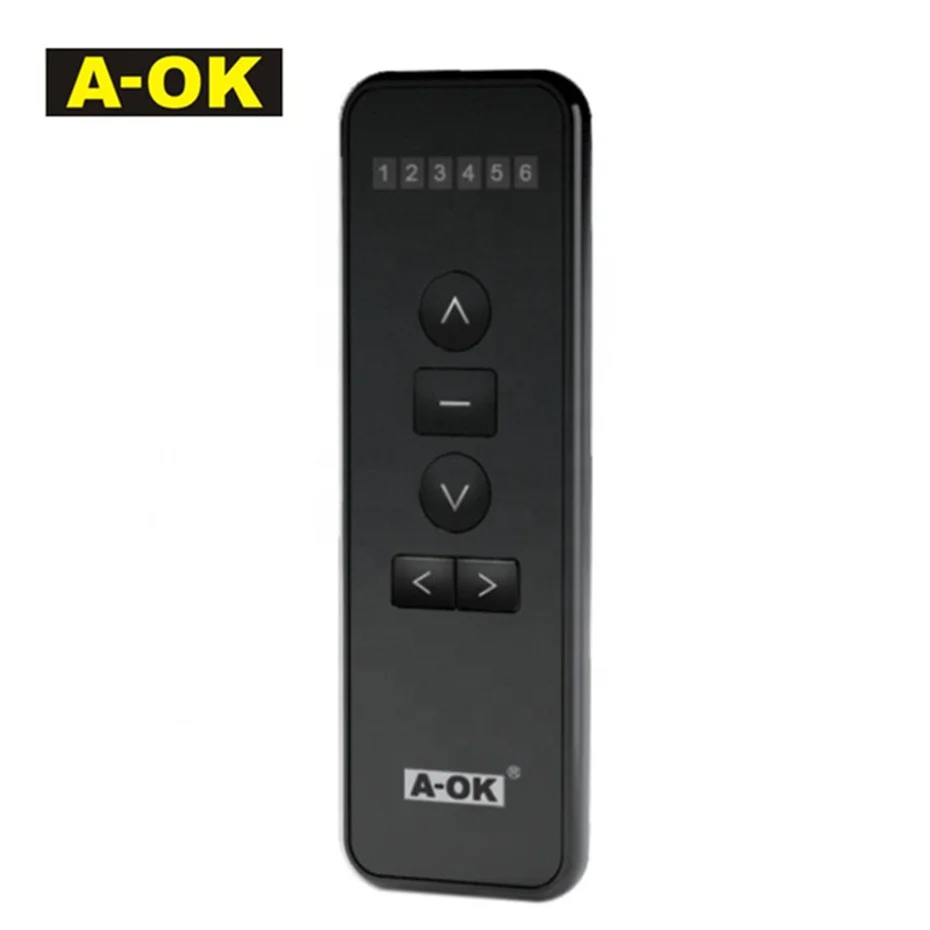

- RF433 remote control:support
- Tuya app wifi control:support
- Crown:included
- Drive adapter:included
- Constant speed work:yes
- Intelligent central control:support
- super quiet design:yes
Отзывы
-

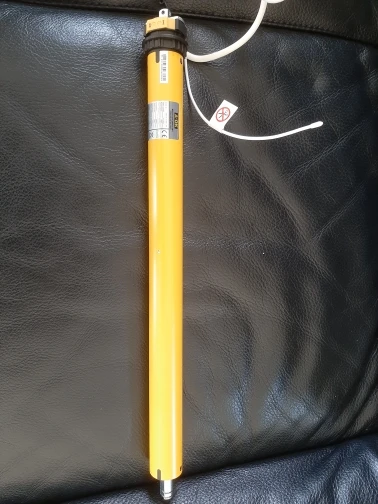

В первую очередь огромное спасибо и благодарность продавцу, который был очень милым, действительно хорошим и отзывчивым, поскольку они ответили на все мои вопросы и запросы и любезно предоставили фотографии и объяснения. Мотор очень хорошего качества и отлично работает. Я настоятельно рекомендую электронную настройку предела, которая действительно упрощает установку. 100%⭐⭐⭐⭐⭐
Laurent B. 24 января 2024
-
С продавцом было очень легко поговорить, и он был полезен в Австралии менее чем за 10 дней.
Aaron C. 9 февраля 2024
Описание

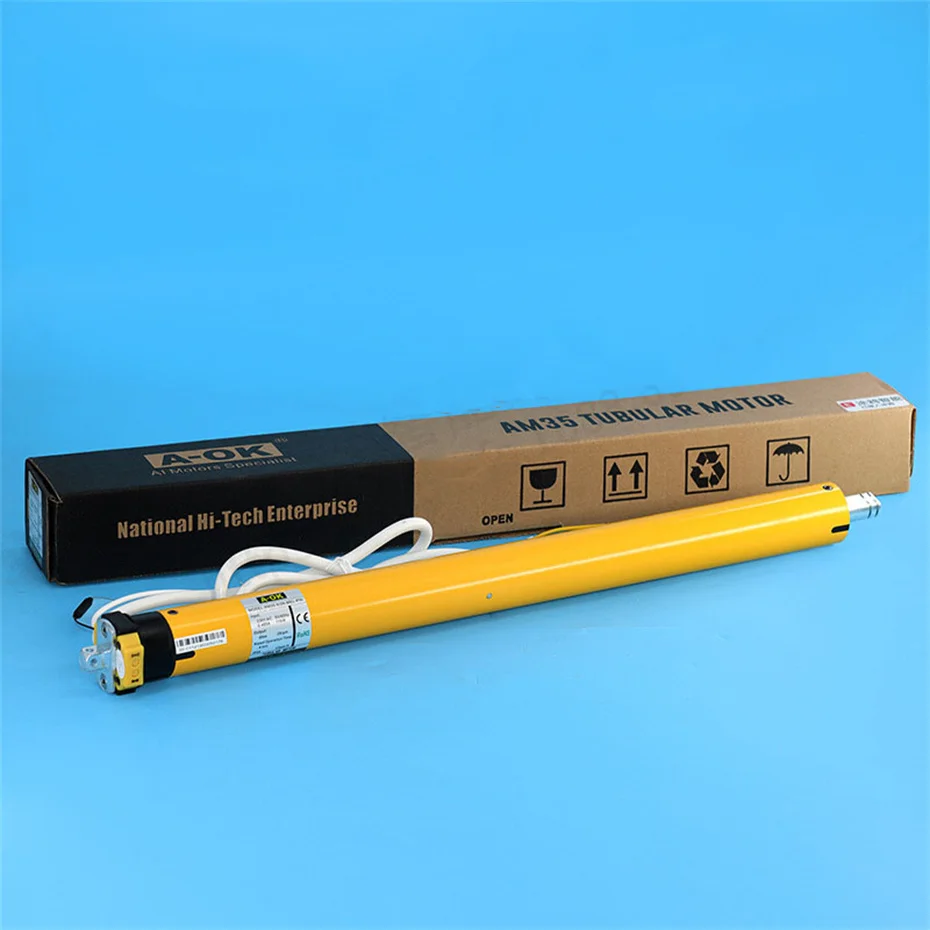

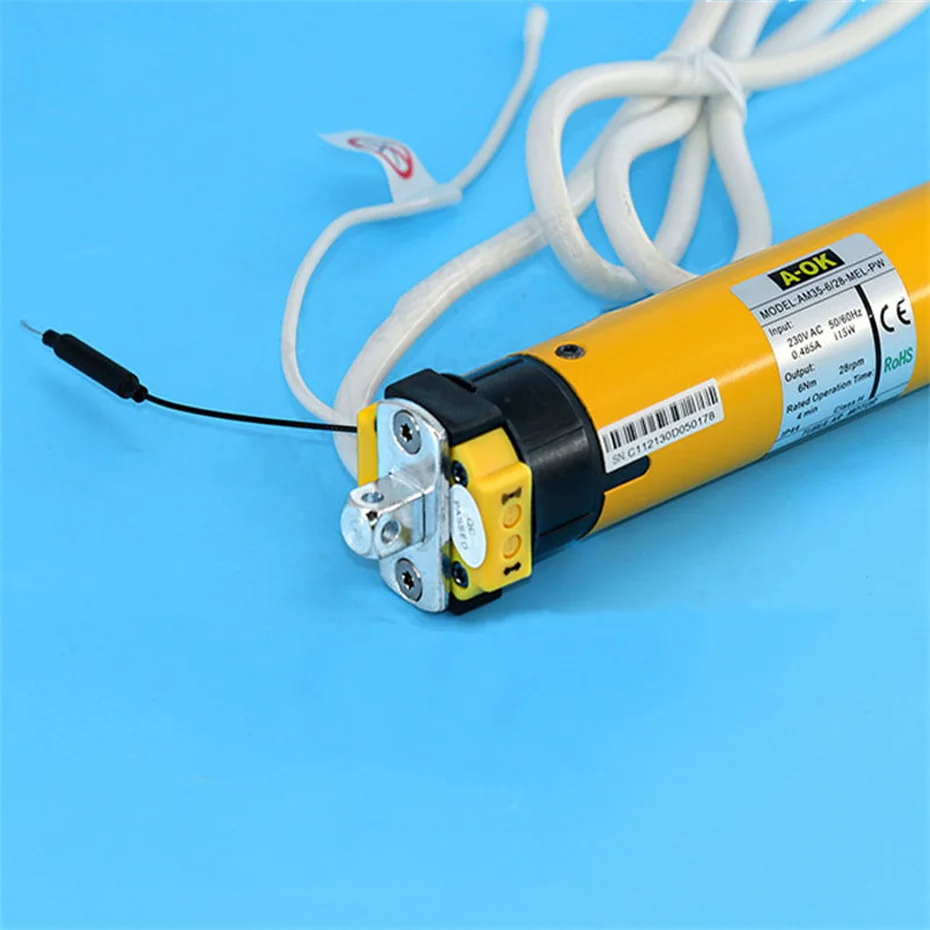

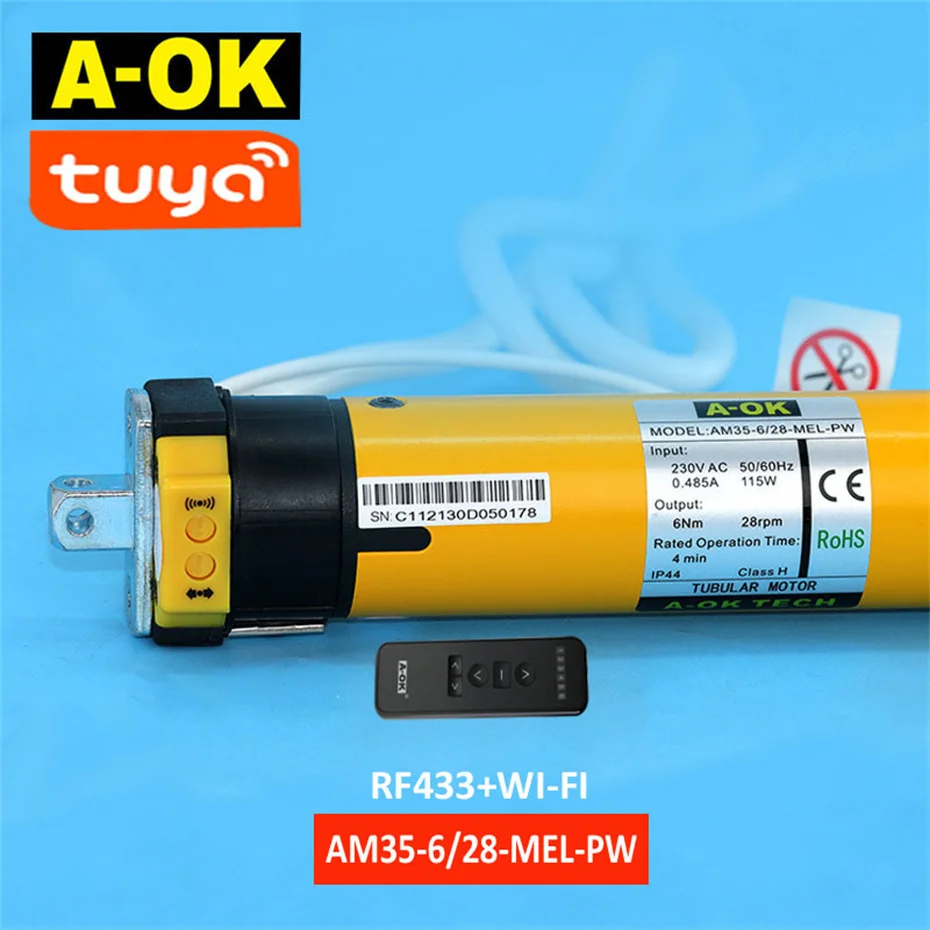

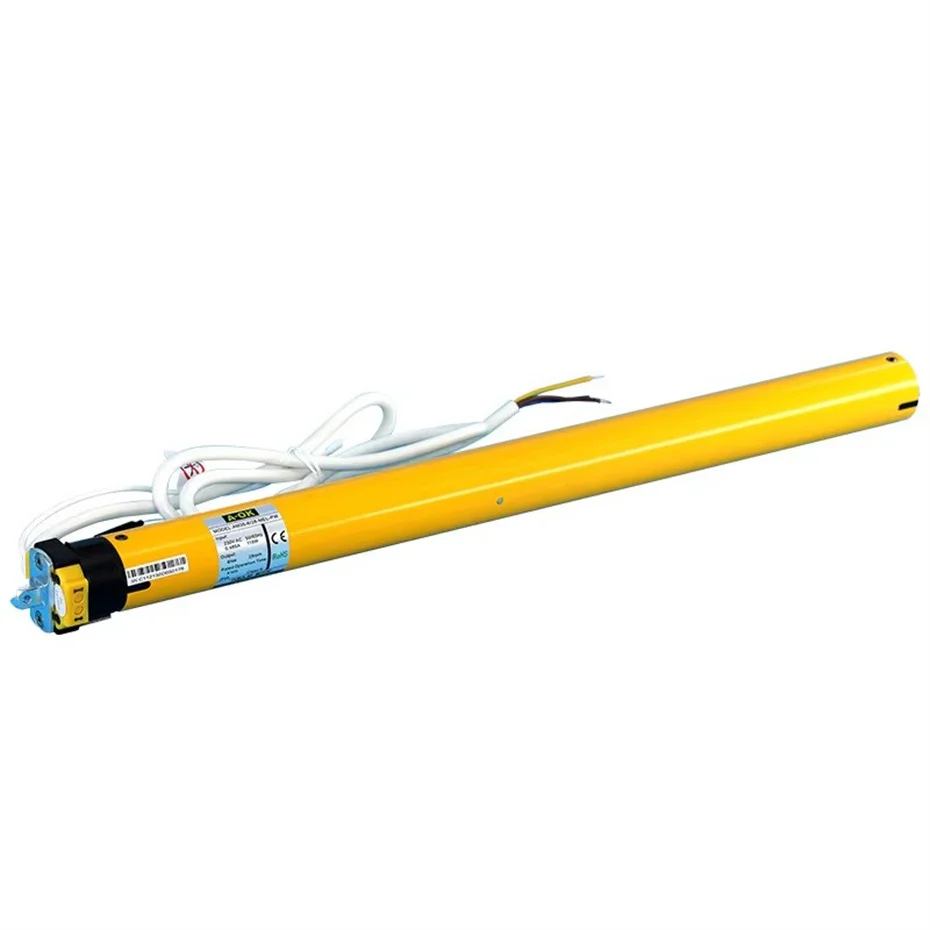

A-OK AM35 6/28 Smart Rolling Tubular Motor,RF433 Remote+Tuya wifi App,for 40mm/45mm/47mm/50mm Tube,for Rolling Blinds,230V 50/60HZ
Remark ：for this tubular motor, there is blue color or yellow color, which in stock, we will send out which color by Randomly, please noted,tks
Warm Notice
1) After order,please make sure phone number,address on Aliexpress is correct.
2) Keep your phone through all the time please.
3) Monitor tracking information on Aliexpress very often,it is very important!
4) Your package may be destroyed by the shipping company if they can't call you successfully or no one picks up the parcel in the deadline. Then it will be a big loss for you. You know it is out of our control. Thank you!
Item Features
1. with tuya app wifi control and RF433 remote control
2. Electronic limitssetting by remote,easy for installation
3. Multiple limits preset,besides end limits,4 more middle limits for optional
4. Keep the limits when the power off
5. Self-checking and correcting of brake offset
6. Stop on block for security
7. Famous quality components to ensure reliable performance

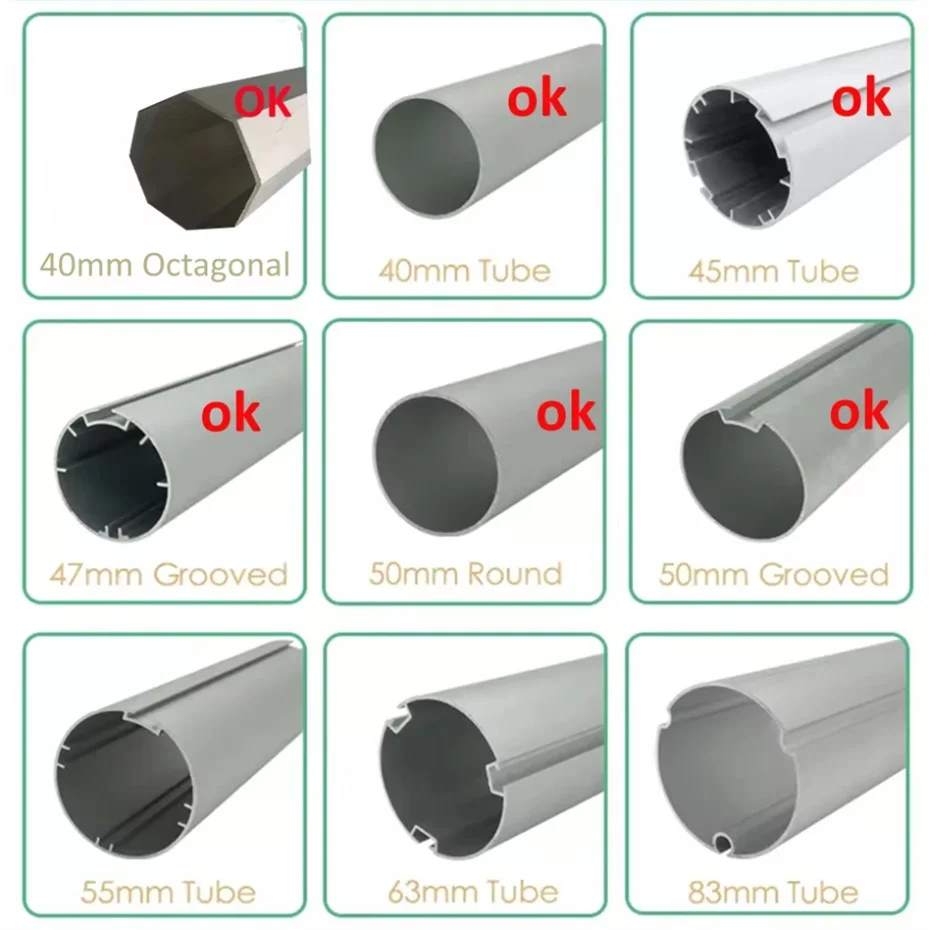

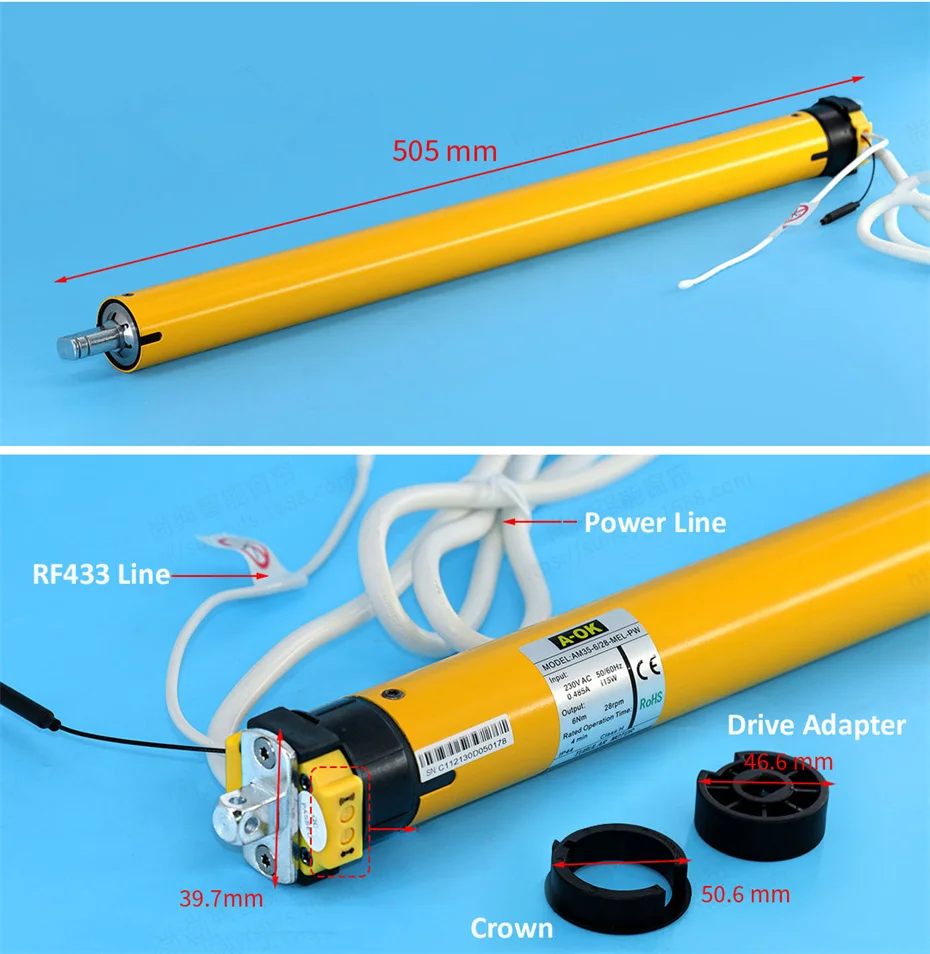

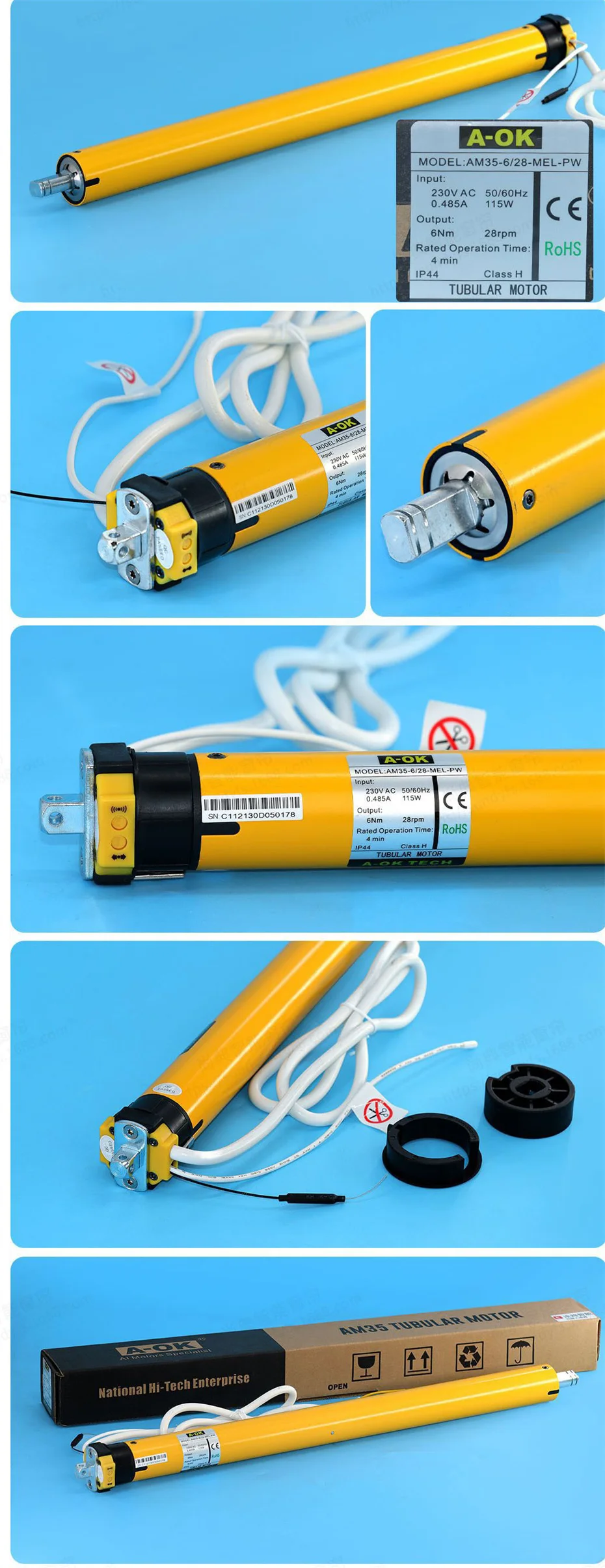

This A-OK AM35-6/28-MEL-PW can work with 40/45/47/50 rolling tube as the picture show
If you already have rolling tubes, pls check their size and inner structure carefully and compare your tubes with ours as below picture. Because we will offer you below crown and drive adapter according to the bundle you choose.

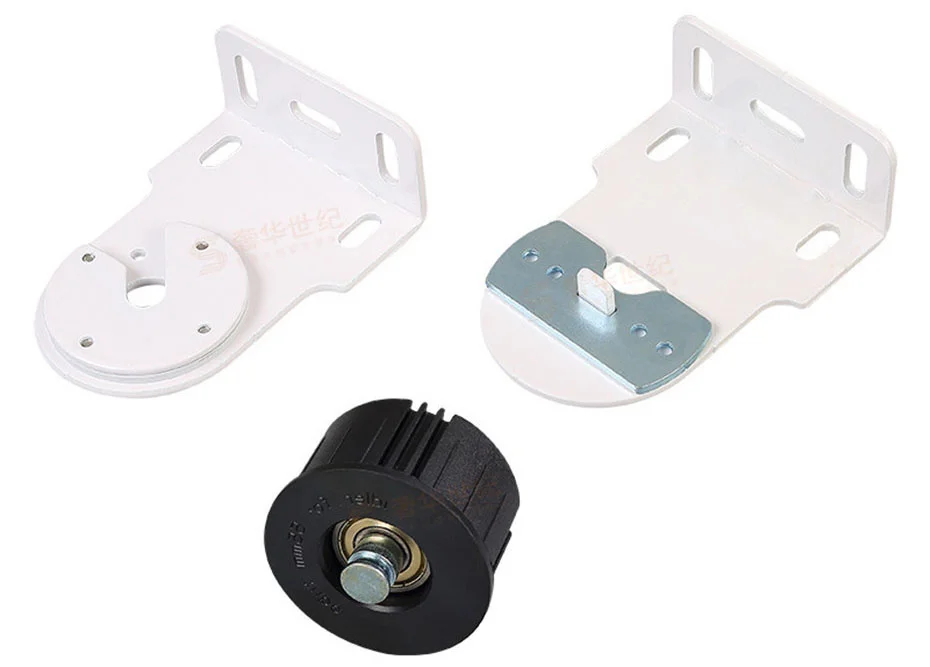

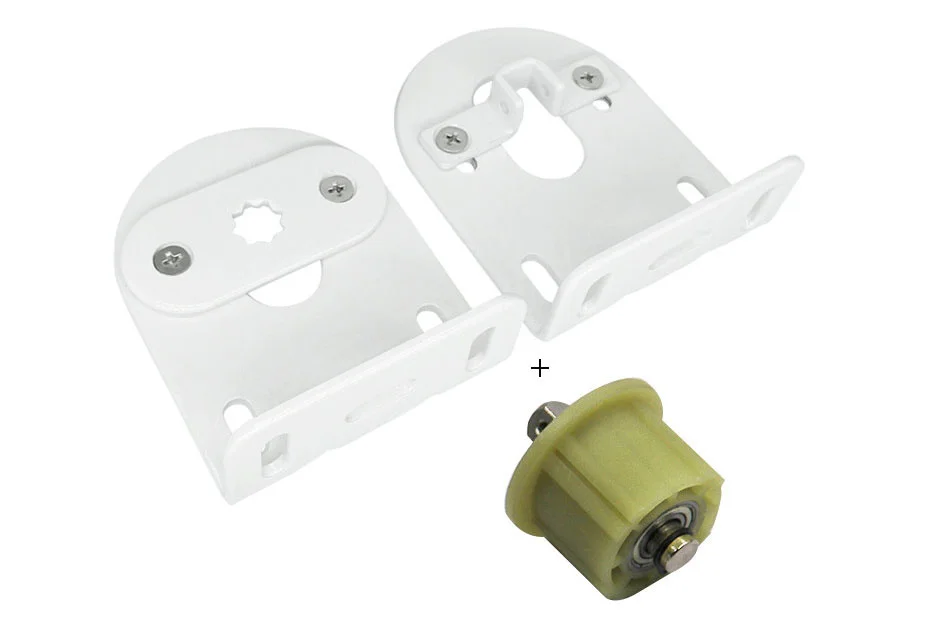

You need to order the matched brackets here
Brackets and Tail Plug for 45/50mm Grooved Tube
Brackets and Tail Plug for 47mm Grooved Tube
Tips About crown and Drive adapter:
1. for rolling tube with same outer diameter,there are so many different inner structures in different countries. we can only offer you crown and drive adapter from original package of A-OK for different tubes as below. Please check first.
2. For the crown and drive adapter, sometimes you need to modify and make them work with your tube.
3. Some buyers can make crown and drive adapter with 3D printer,very good and nice,it is a good choice.
4. Or you need to find crown and drive adapter in your local market and get them.
5. If your old crown and drive adapter on your tube still work well, it is a better choice.

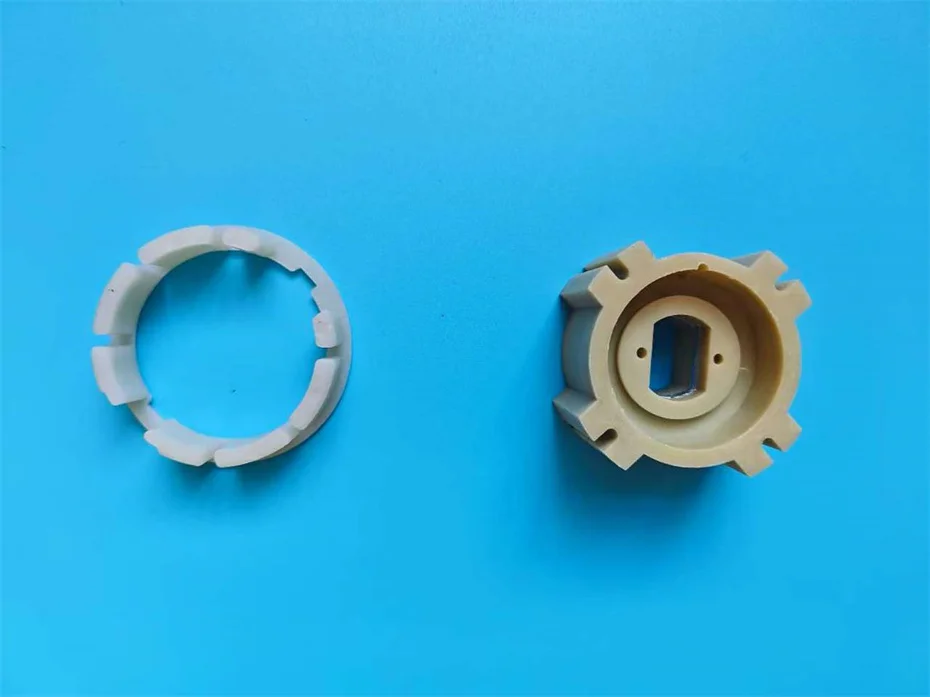

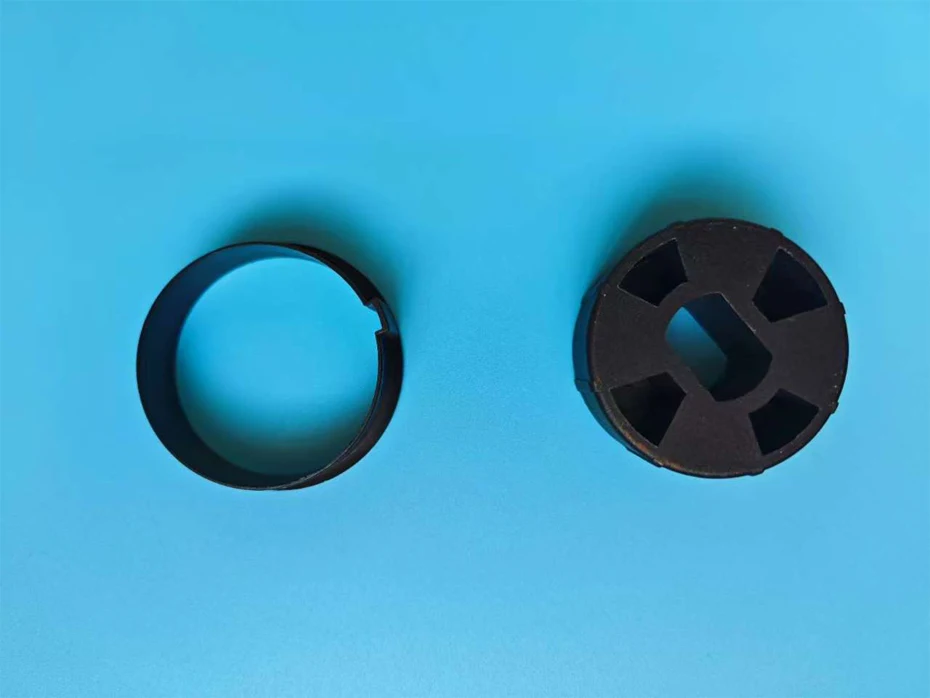

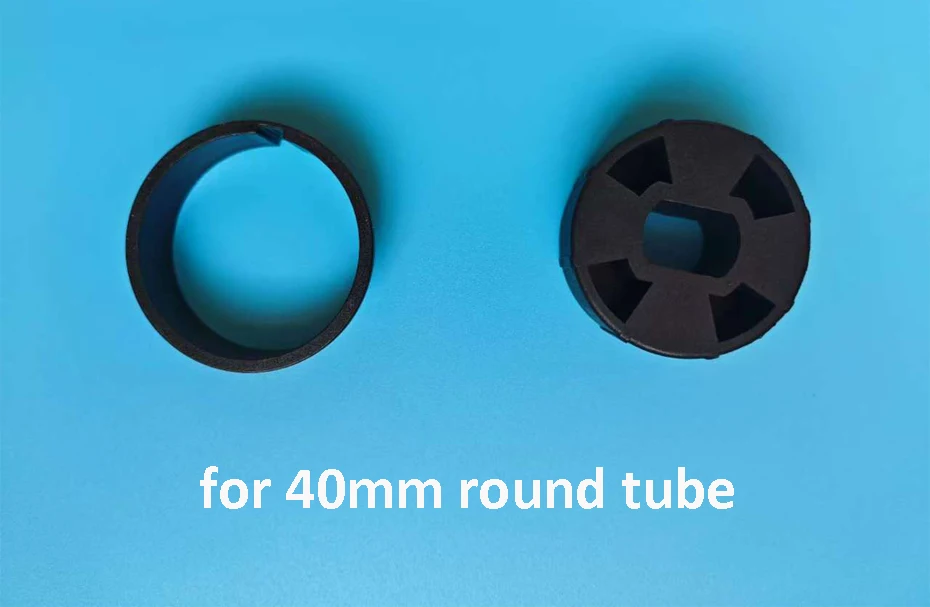

Below Crown and Drive Adapter is for 40mm Round Tube:

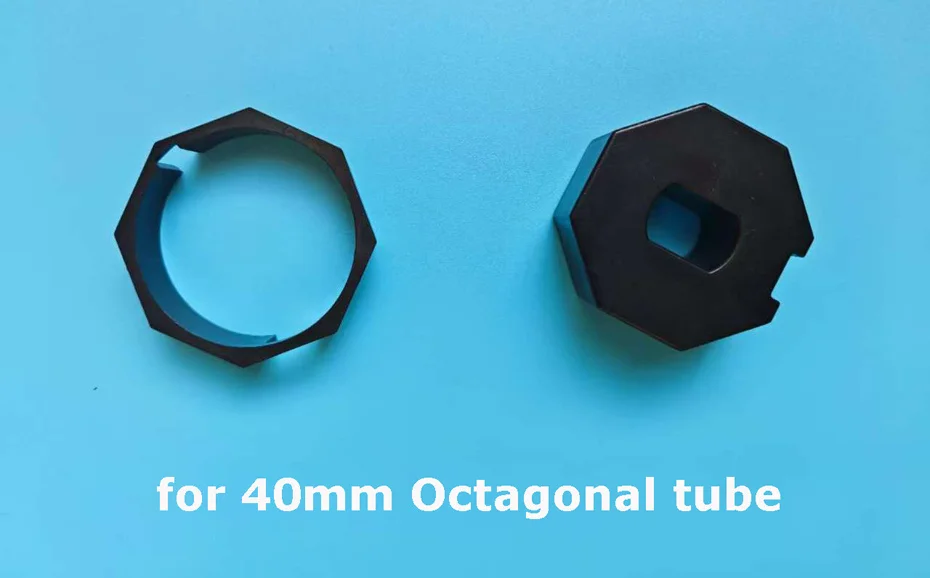

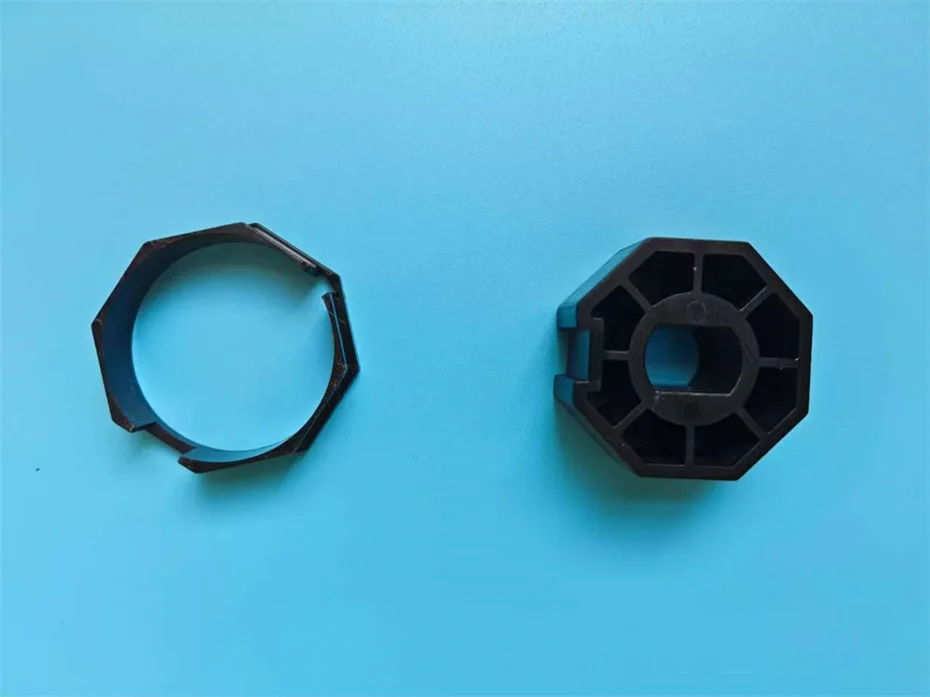

Below Crown and Drive Adapter is for 40mm Octagonal Tube:

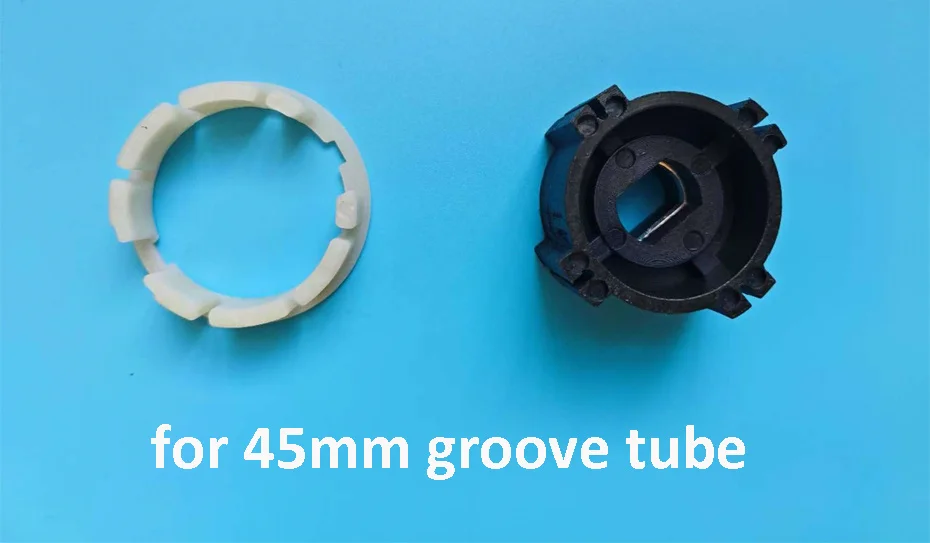

Below Crown and Drive Adapter is for 45mm Groove Tube:

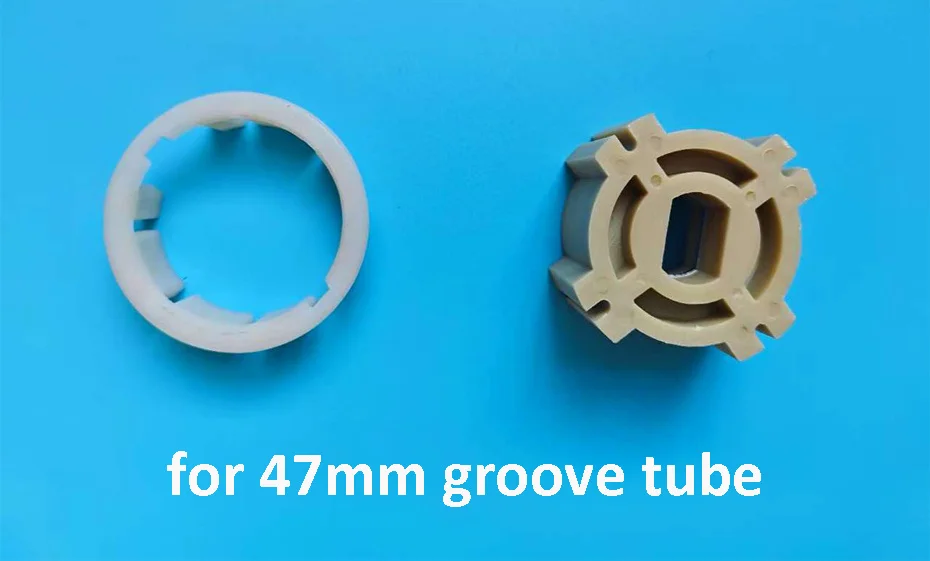

Below Crown and Drive Adapter is for 47mm Groove Tube:

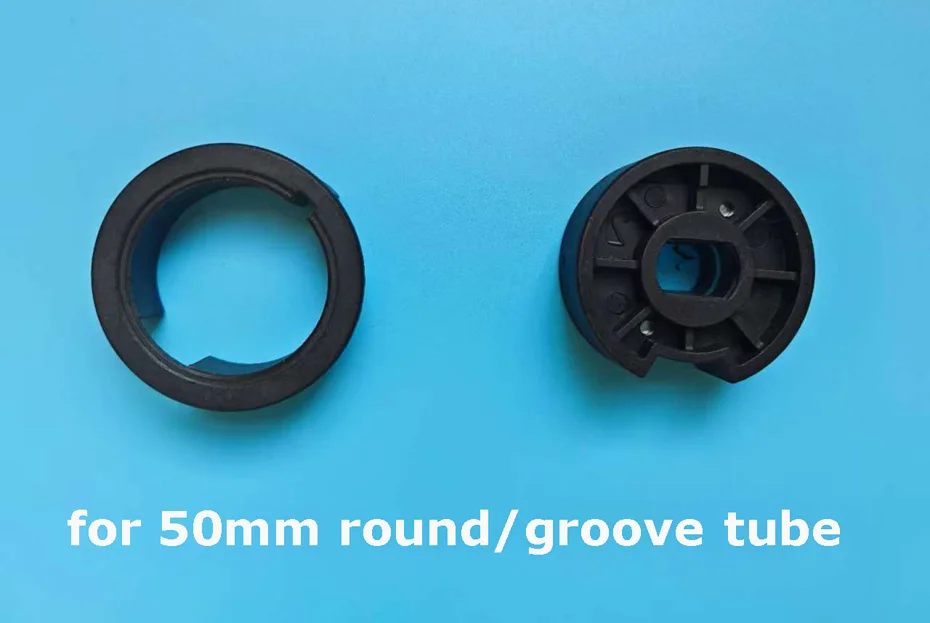

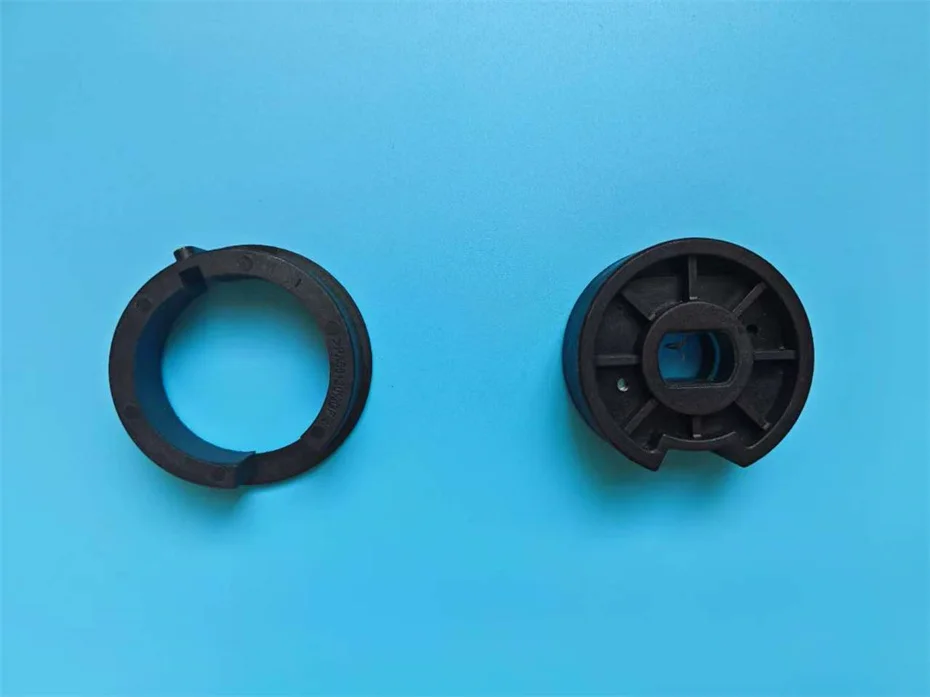

Below Crown and Drive Adapter is for 50mm Groove Tube or 50mm Round Tube

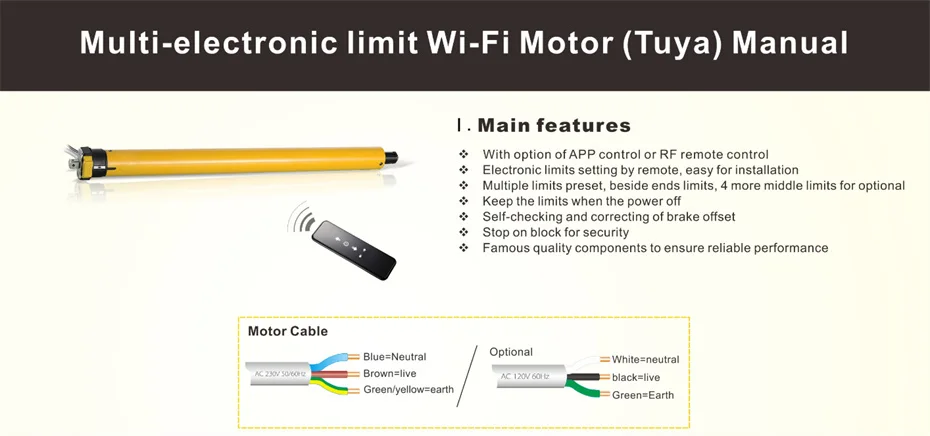

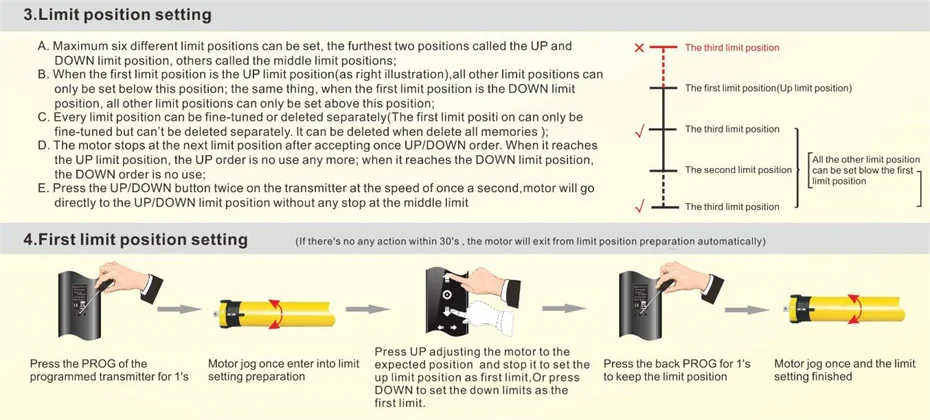

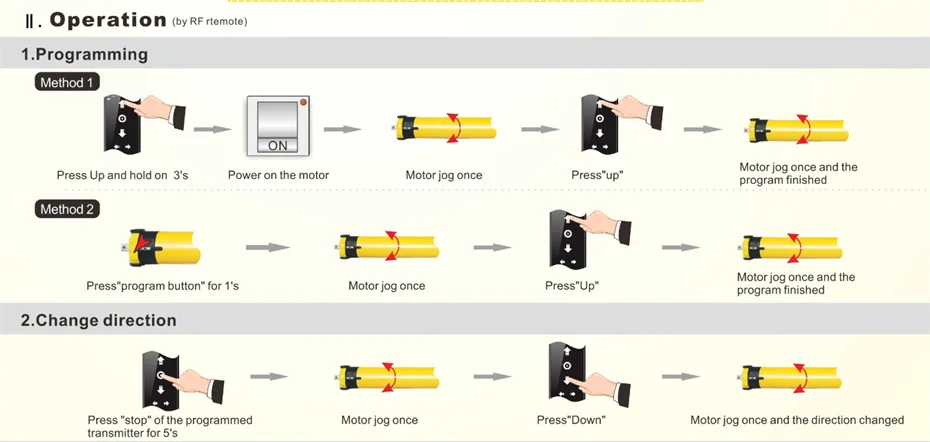

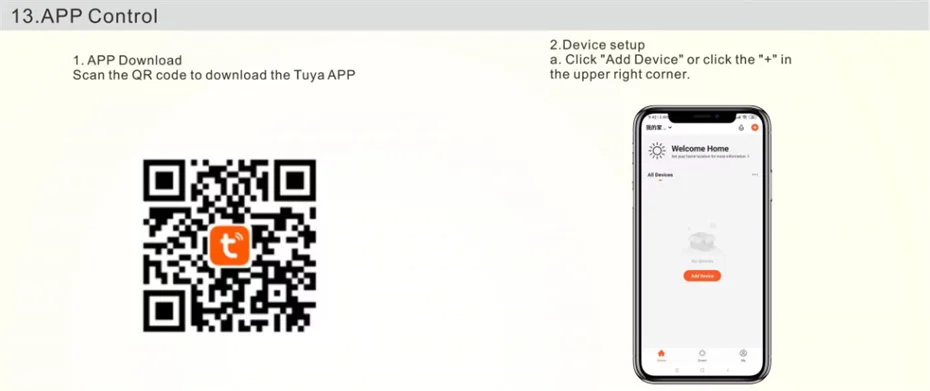

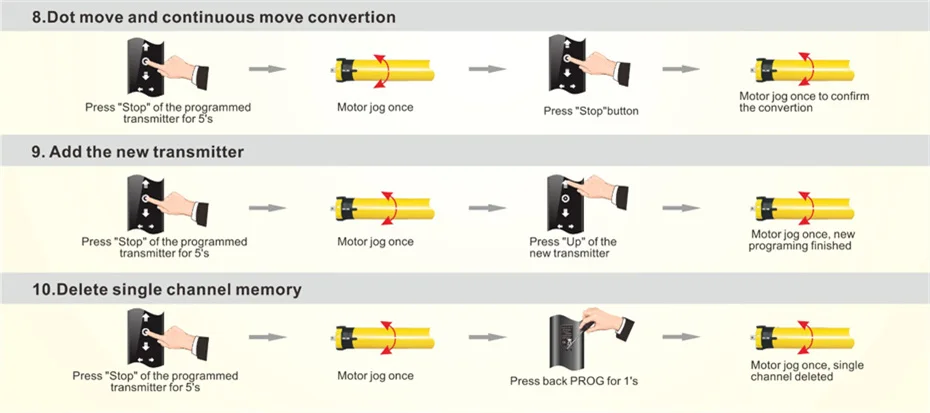

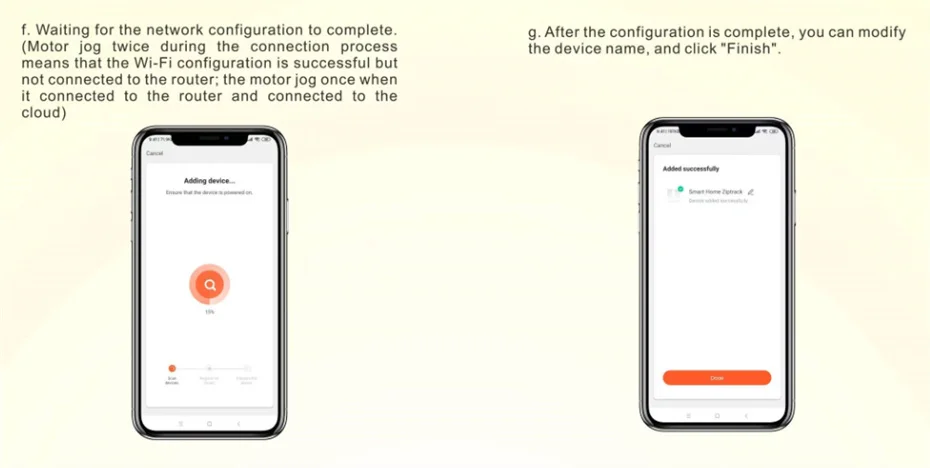

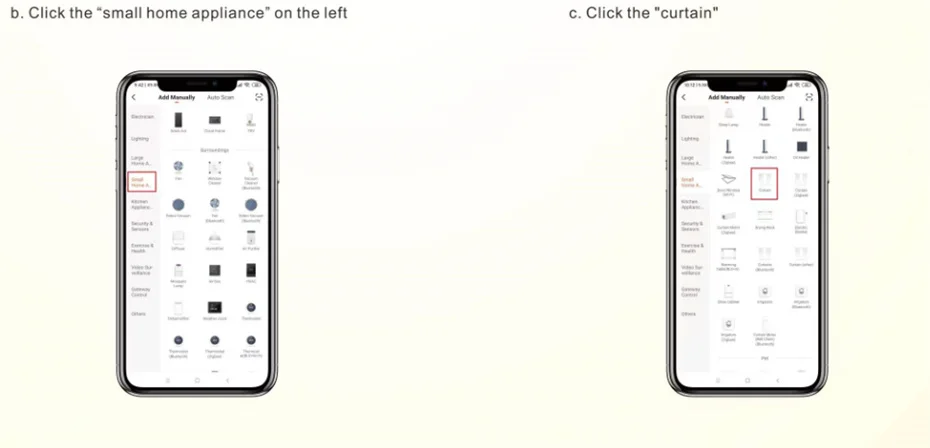

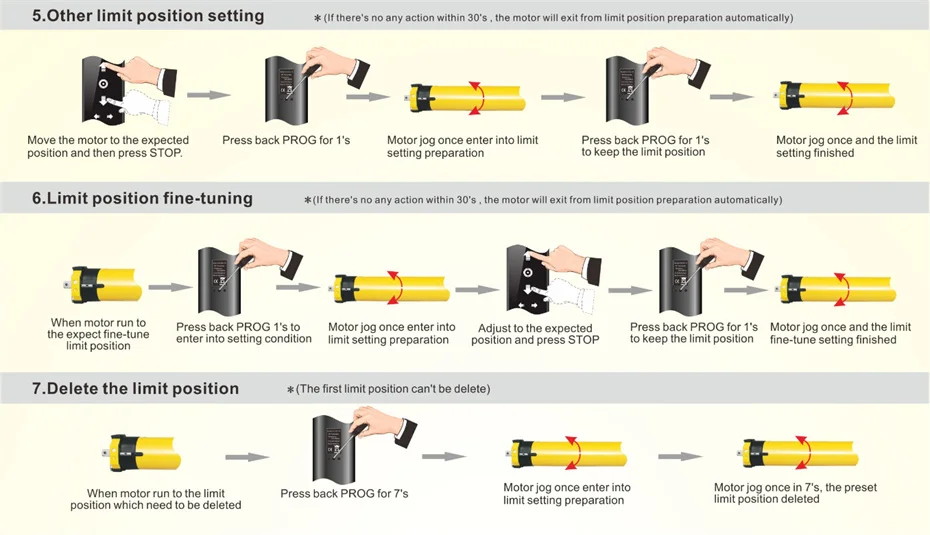

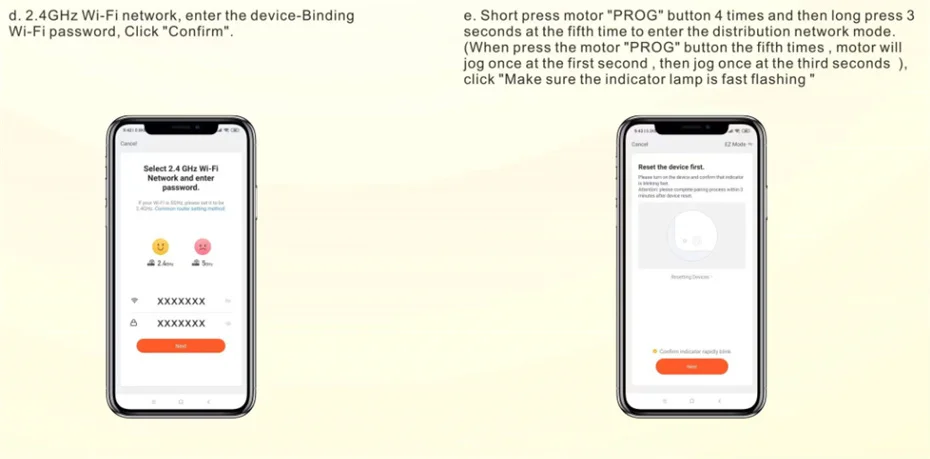

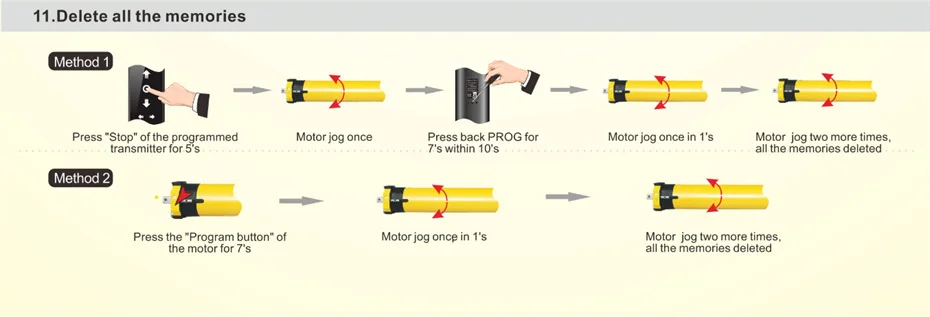

User Manual for Motor
